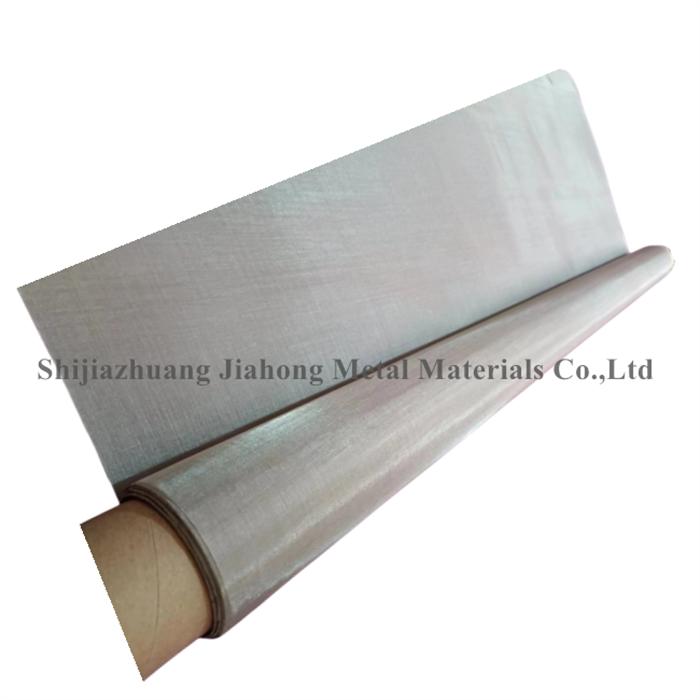

Nickel Woven Wire Mesh | Pure Nickel Mesh | Ni Weave Mesh
Premium nickel woven wire mesh for extreme environments. High-temperature resistance (up to 1000°C) ; Corrosion-proof ; Customizable specifications. Pure Nickel wire mesh are widely used in aerospace, chemical filtration & battery electrodes. ISO-certified manufacturer.
Description
Nickel Woven Mesh | Pure Nickel Wire Mesh | Ni201 Mesh For Battery | Ni Wire Mesh
1. Material & Composition
Pure Nickel (Ni200/201): 99.6%+ purity, ideal for electronics & alkaline environments.
Nickel Alloys (Monel, Inconel,Hastelloy, Nichrome): Enhanced strength for aerospace & marine applications.
Weaving Techniques: Plain weave, twill weave, Dutch weave—explain differences with wire diameter (0.02mm–2mm) and mesh count (2–500).
2. Technical Specifications Chart of Nickel Mesh Screen
| Parameter | Range |
|---|---|
| Wire Diameter | 0.02mm – 2mm |
| Mesh Count | 2 – 500 |
| Opening Size | 0.025mm – 12.7mm(Mini 25 micron) |
| Weave Type | Plain, Twill, Dutch Weaving |
| Thickness | 0.1mm – 5mm |
3. Key Features & Benefits of Nickel Wire Mesh
- Extreme Temperature Resistance
Withstands up to 1000°C (Monel), perfect for furnace filters & exhaust systems. - Superior Corrosion Resistance
Resists acids, alkalis, and saltwater—ideal for chemical processing & offshore rigs. - High Electrical Conductivity
Used in battery electrodes (e.g., Ni-MH batteries) and EMI shielding. - Customizable & Durable
Laser-cut edges, welded frames, or rolled forms for seamless integration.
4. Applications by Industry of Ni Wire Mesh
- Chemical Processing Acid/alkali filtration, catalyst support in reactors.
- Aerospace & Energy Gas turbine filters, fuel cell components.
- Electronics Battery electrodes, RF shielding.
- Pharmaceuticals Sterile filtration with FDA-compliant options.
5. FAQs
- Q: “Nickel vs stainless steel mesh – which is better for saltwater?”
A: Nickel alloys outperform SS316 in marine corrosion. - Q: “Can you weave nickel with other metals?”
A: Yes, hybrid weaves (e.g., Ni-Cu, Ni-Cr, Ni-Cr-Fe, Ni-Cr-Mo, Ni-Fe alloy ) available for specialized conductivity.
Additional information
| Mesh Size | 10mesh, 20mesh, 30mesh, 40mesh, 50mesh, 60mesh, 80mesh, 100mesh, 120mesh, 150mesh, 180mesh, 200mesh, 250mesh, 300mesh, 325mesh, 350mesh, 363mesh, 400mesh |
|---|---|
| Roll Width | 1m, 1.22m, 1.5m, 1.8m, 2m, 3m |
| Surface | Raney Nickel Coating Nickel Mesh, Copper Plated Nickel Wire Mesh |
| Cutting | Cutting into Any shapes if needed, such as round, square, special, rectangle and ect. |
| Custom Size | custom sizes for meshes count, wire diameter, roll width, roll length all can be produced. |
