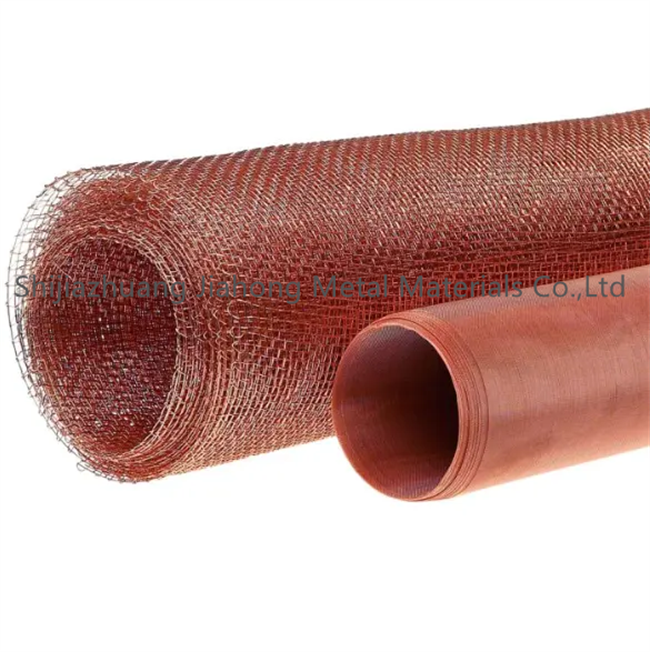

Phosphor Bronze Copper Wire Mesh Screens
Phosphor bronze wire mesh, also called bronze metal mesh, is a versatile material crafted from an alloy primarily composed of copper (90-95%), tin (5-10%), and a trace of phosphorus (0.01-0.35%). The addition of phosphorus enhances the alloy’s mechanical properties, improving strength, corrosion resistance, and wear resistance while reducing oxidation during manufacturing. This results in a durable, high-performance mesh suitable for demanding environments.
Description
1.Material:

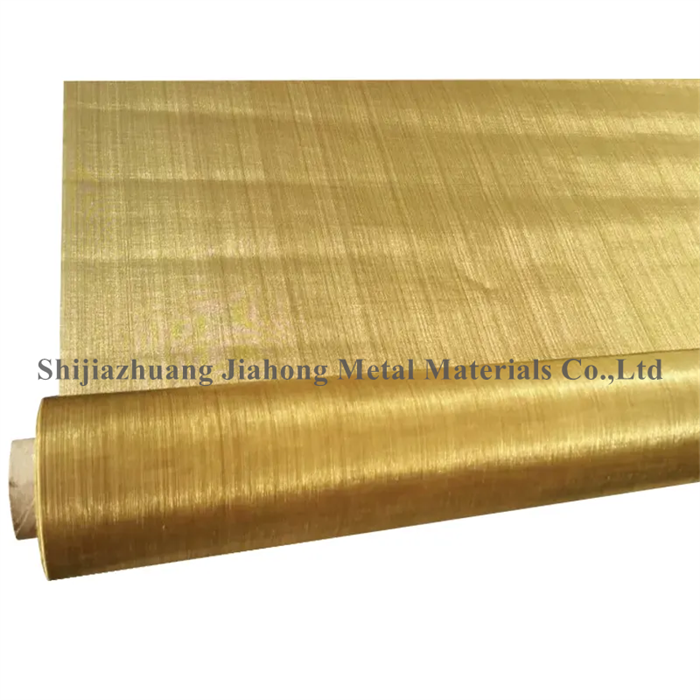

- brass wire–purity–Cu: 65% , Zn:35%

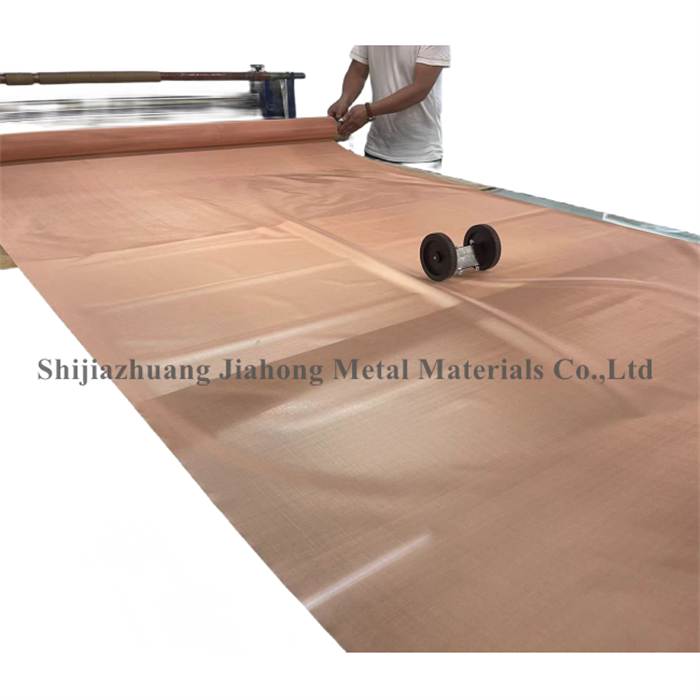

- red copper wire–purity–Cu:99.8%
- phoshpor bronze wire–purity–Cu:85%-90% , Sn:5%-15%
2. Weave type:
Plain weave,twill weave,dutch weave
3.Characteristics:
- non-magnetic, wear resistance
- acid and alkali resistance, good ductility
- good conductivity, good heat transfer performance
4.Application:
Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).
The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.
5. Production range:
- wire diameter: 0.025-2mm
- mesh counts: 3-400 mesh
- common roll width:1m, 1.2m, 1.5m, 1.8m, 2m
- common roll length:30m, 50m, 100m
|
Specification of plain weave phosphor bronze mesh screen
|
|||||
|
Mesh/inch
|
Wire Diameter
（mm）
|
Aperture (mm)
|
Mesh/inch
|
Wire diameter(mm)
|
Aperture (mm)
|
|
2mesh
|
1.8
|
10.9
|
60mesh
|
0.15
|
0.273
|
|
3mesh
|
1.6
|
6.866
|
70mesh
|
0.14
|
0.223
|
|
4mesh
|
1.2
|
5.15
|
80mesh
|
0.12
|
0.198
|
|
5mesh
|
0.91
|
4.17
|
90mesh
|
0.11
|
0.172
|
|
6mesh
|
0.8
|
3.433
|
100mesh
|
0.1
|
0.154
|
|
8mesh
|
0.6
|
2.575
|
120mesh
|
0.08
|
0.132
|
|
10mesh
|
0.55
|
1.99
|
140mesh
|
0.07
|
0.111
|
|
12mesh
|
0.5
|
1.616
|
150mesh
|
0.065
|
0.104
|
|
14mesh
|
0.45
|
1.362
|
160mesh
|
0.065
|
0.094
|
|
16mesh
|
0.4
|
1.188
|
180mesh
|
0.053
|
0.088
|
|
18mesh
|
0.35
|
1.06
|
200mesh
|
0.053
|
0.074
|
|
20mesh
|
0.3
|
0.97
|
250mesh
|
0.04
|
0.061
|
|
26mesh
|
0.28
|
0.696
|
300mesh
|
0.035
|
0.049
|
|
30mesh
|
0.25
|
0.596
|
325mesh
|
0.03
|
0.048
|
|
40mesh
|
0.21
|
0.425
|
350mesh
|
0.03
|
0.042
|
|
50mesh
|
0.19
|
0.318
|
400mesh
|
0.25
|
0.0385
|
