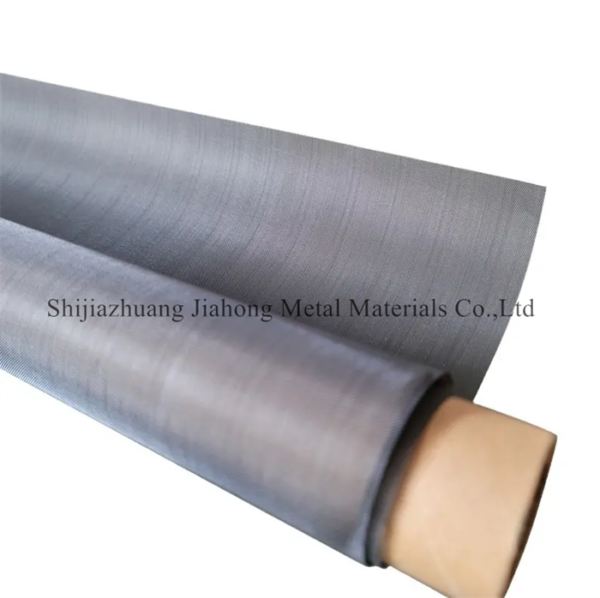

Pure Titanium Wire Mesh | Pure Titanium Mesh Screen | Ti Woven Mesh

Description

Titanium wire mesh | Titanium Woven Mesh | Ti wire mesh | Titanium mesh screen

1. Material Composition & Grades

Grade	Composition	Key Properties	Certifications
Gr1	99.5% Ti	Max ductility	ASTM F67
Gr5 (Ti-6Al-4V)	90% Ti, 6% Al, 4% V	High strength	ASTM F136, ISO 5832-3
Gr7	Ti-0.2% Pd	Superior acid resistance	ASME SB265

2. Technical Parameters of  Titanium mesh

Property	Value	Test Method
Tensile Strength	240-1,100 MPa	ASTM E8
Melting Point	1,668°C	ASTM E29
Density	4.5 g/cm³	ISO 1183

3. Key Advantages of the pure Ti mesh

• Corrosion Resistance: Withstands HCl (20%), seawater, chlorine (ISO 8044)
• Biocompatibility: ISO 10993-certified for surgical implants
• Weight Savings: 45% lighter than stainless steel mesh with equal strength
• Non-Magnetic: Ideal for MRI/medical imaging environments

---

4. Industrial Applications of titanium woven mesh

A. Medical & Dental

• Surgical mesh for hernia repair (FDA 510(k) cleared)  ;  Dental bone graft containment (0.1mm aperture twill weave)

B. Aerospace & Defense

• Satellite antenna shielding (EMI attenuation >90dB)   ;  Jet engine air intake filters (operates at 600°C)

C. Chemical Processing

• Chlor-alkali electrolysis anodes (Gr7 titanium mesh)    ;   PTFE-coated mesh for acid mist elimination

---

5. Customization Options

• Roll sizes:  1x30m roll size(common),  Max width up to 3m (Custom and can be laser-cut edges into any shapes sizes )
• Surface Treatments:
  • Anodizing (gold, blue colors for architectural use)
  • Plasma spray (Al2O3 coating for abrasion resistance)

6. FAQ Section

Q1: Can titanium mesh be used in seawater desalination plants?
Yes! Grade 2 titanium mesh offers <0.005mm/year corrosion rate in seawater (per NACE TM0169).

Q2: Is titanium wire mesh MRI-safe?
Absolutely. Titanium is non-ferromagnetic, compliant with ASTM F2503 MRI safety standards.
