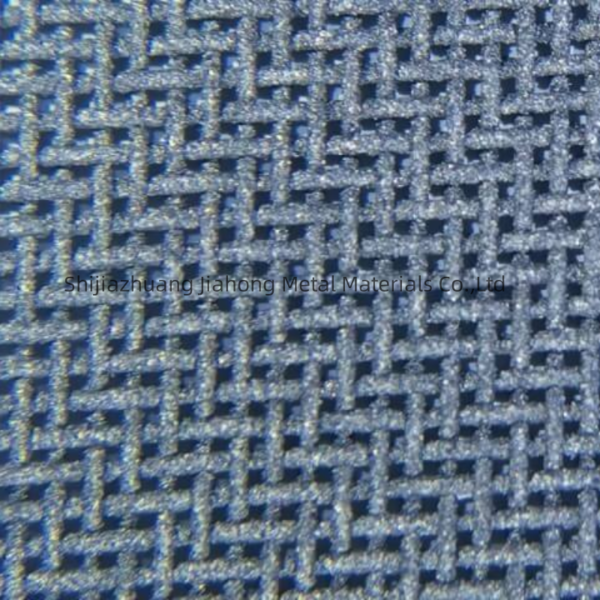

Raney Nickel Wire Mesh – Hydrogen Production Raney-Ni Catalyst Mesh
Raney nickel coating nickle mesh is the combination of the Al-ni alloy, which has high catalytic activity, selectivity and stability, and is widely used in petrochemical, fine chemical, pharmaceutical, environmental protection and other fields. such as hydrogenation reactions, dehydrogenation reactions, isomerization reactions, synthesize fragrances, drugs, dyes, synthesize antibiotics, vitamins,treat wastewater and waste gas.
Description
Material Composition of Raney-Ni woven mesh catalyst.
- Base Material: High-purity nickel (Ni 99.5%+) woven mesh substrate.
- Coating: Activated Raney Nickel (Ni-Al alloy, leached to create a porous, high-surface-area catalytic layer).
- Additional Treatments: Acid-washed and stabilized for enhanced durability and reactivity.
Technical Parameters for raney-ni catalyst
| Property | Specification |
|---|---|
| Material | Nickel Woven Mesh + Raney Nickel Coating |
| Mesh Count | 20–200 Mesh (customizable)，
common size 40/46/60/50 mesh 0.18/0.19/0.25mm |
| Wire Diameter | 0.05–0.5 mm |
| Thickness | 0.1–3 mm |
| Porosity | 30–70% |
| Max Operating Temp | 500°C |
| Surface Area | 50–100 m²/g |
Key Features & Benefits of Raney-Ni catalyst
- Superior Catalytic Activity
- Raney Nickel’s ultra-porous structure maximizes surface area (up to 100 m²/g), enabling efficient hydrogenation, dehydrogenation, and chemical synthesis reactions.
- High Temperature & Corrosion Resistance
- Stable in temperatures up to 500°C and resistant to harsh chemicals (acids, alkalis), ideal for industrial reactors and filtration systems.
- Customizable Mesh Specifications
- Available in weave densities from 20–200 mesh, wire diameters 0.05–0.5 mm, and thicknesses 0.1–3 mm.
- Reusable & Long-Lasting
- Retains >90% catalytic efficiency after 10+ reaction cycles with proper maintenance.
- Low Pressure Drop
- Open-weave design ensures minimal flow resistance for gas/liquid applications.
Primary Applications of raney nickel woven mesh:
- Chemical Catalysis: Hydrogenation reactors, fuel cell electrodes, syngas purification.
- Pharmaceuticals: Intermediate synthesis, API production.
- Environmental Engineering: VOC abatement, wastewater treatment.
- Energy Sector: Hydrogen generation/purification, battery components.
- Laboratory Use: Small-scale R&D catalysis.
Hydrogen-Focused of Raney-Nickel coating nickel mesh catalyst FAQs
Q1: How does this mesh improve electrolyzer ROI?
A: Its low overpotential reduces energy consumption by 18–22%, cutting $0.15–0.30/kg H₂ production costs (NREL data).
Q2: Can it replace platinum in fuel cells?
A: While not a full replacement, it significantly reduces Pt loading requirements (0.1 mg/cm² vs. 0.3 mg/cm² standard).
Q3: Is the mesh compatible with ammonia cracking for hydrogen carriers?
A: Yes – tested for 1,000+ hours in ammonia-to-hydrogen converters with <2% activity loss.
Q4: What certifications support hydrogen safety?
A: Meets NFPA 2 (Hydrogen Technologies Code) and IEC 62282-201 standards for H₂ equipment.
Additional information
| Mesh size | 40mesh, 46mesh, 60mesh, 50mesh, 80mesh |
|---|---|
| Catalyst diameter | 800mm, 900mm, 400mm, 1000mm, 1400mm, 1600mm, 1800mm, 1850mm |
| Shape | round, square, rectangle and other custom shape |
